| Place of Origin: | China |
|---|---|
| Brand Name: | IZUMI |
| Certification: | ISO/TS16949 |
| Model Number: | 34118 |
| Minimum Order Quantity: | 10 pcs |
| Price: | Negotiable |
| Packaging Details: | Neutral Package or as customers' request |
| Delivery Time: | 5-10 days |
| Payment Terms: | D/A,D/P,T/T,Western Union |
| Supply Ability: | 1000 pcs/month |
| Highlight: | Nissan QD32 piston ring,ISUZU truck engine piston ring,34118 STD piston ring |
||
|---|---|---|---|
engine volume
outer diameter
I ring thickness
II ring thickness
oil removal ring thickness
| No. | Type | Engine Model |
Vehicle Chassis |
CC | No. Cyl. |
Position | Size(mm) d1 x h1 x a1 |
Shape | Material | Surface Treatment |
Reference | |||
| 1 | 2 | 3 | Outside | Upper/ Lower |
||||||||||

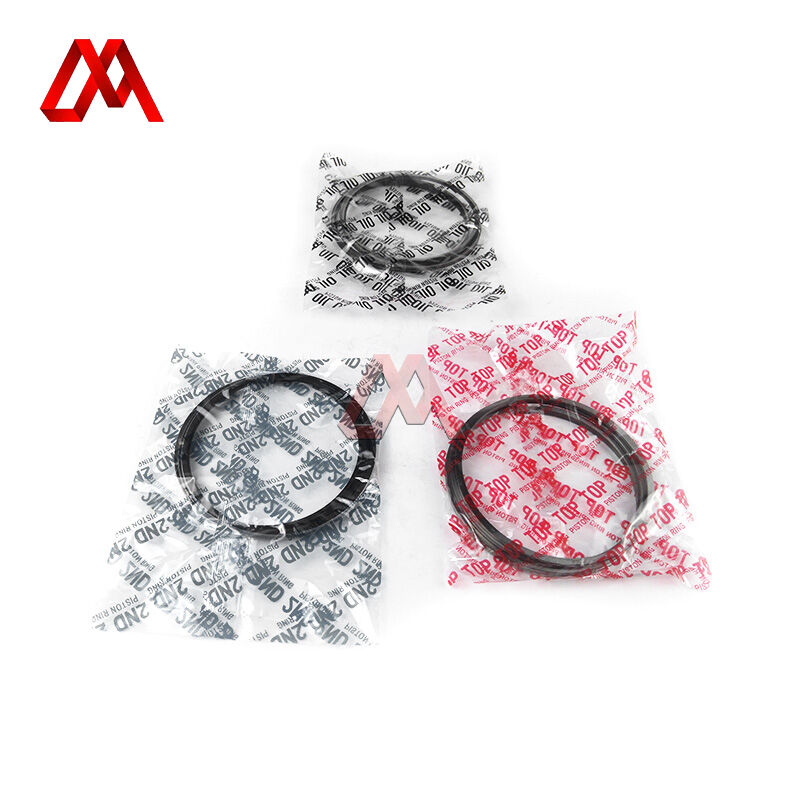

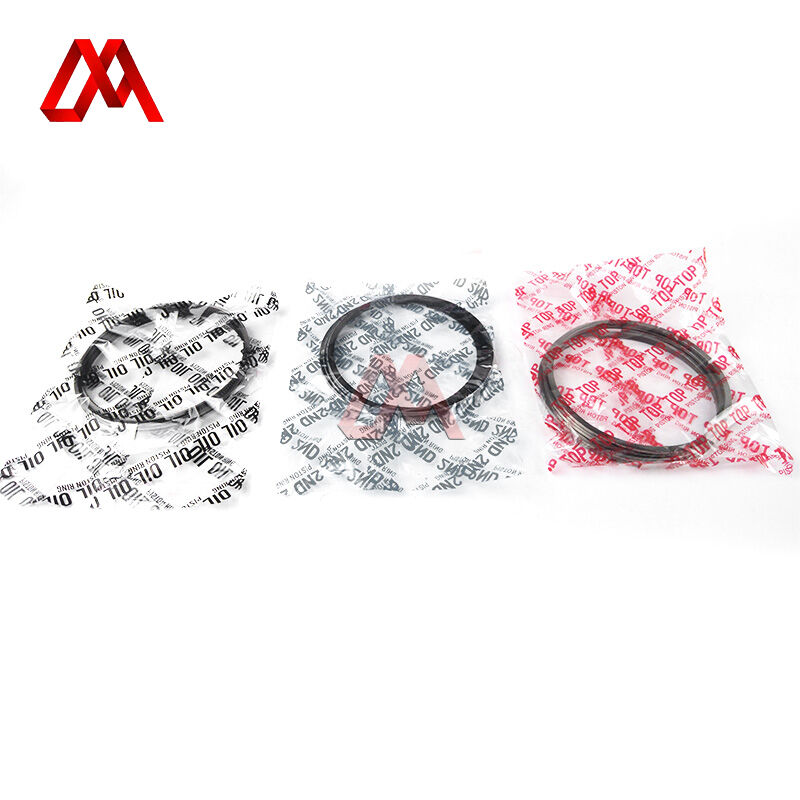

| 34118 | 2FAC | QD32NA | Frontier | 3200 | 4 | T | 99.2 x 2.5 x 3.75 | BF | ST | NT | NT | 12033-2S610 | ||
| DIESEL | AD5 | Caraban | 2 | 99.2 x 2.0 x 4.1 | TF | ST | FC | CH | PH | |||||
| Dutsun Track | O | 99.2 x 3.0 x 3.75 | 2F | ST | NT | NT | ||||||||
Product Description
A Piston Ring is a metallic split ring that is attached to the outer diameter of a piston in an internal combustion engine or steam engine.
The main functions of piston rings in engines are:
1.Sealing the combustion chamber so that there is minimal loss of gases to the crank case.
2.Improving heat transfer from the piston to the cylinder wall.
3.Maintaining the proper quantity of the oil between the piston and the cylinder wall
4.Regulating Engine Oil consumption by scraping oil from the cylinder walls back to the sump.
| Brand | Engine Models | |
| For Mitsubishi | L3E, K4F, K4M, S4Q2, S3E, K4N, K4D, 4DRS5, S6E, S4E, S45, S6S, DOF, 4DR7, S6R2, S4E2, S4F, 6ED31T, 6D34TC, 6D34, S6K, 4D56, 4D32, 4M50, 4M51, 6D16T, 6D16, 6D17, 6D22, 6D24, S6B3, S6A2, S6A3, 4M40, 6BG1, 6HE1T, 4JG1, C223, 3LD1, 3KR2, 4JG2, 6BD1, 6UZ1, 6SA, 6WF1 | |
| For Isuzu | DA120, 6HK1, 10PE1, C240, 10PD1, 10PC1, 4HG1, 4HF1, 4BD1, 4JJ1, 4HL1, 4HE1T, 3LB1, 4FE1, 4HG1T, 6WAM, 6BF1, 4LE2, DAS40, 6SD1 | |
| For Hino | HO7C, HO7D, JOSE, HO6C, PM100, EF100, JO8CT, K13C, JO8E, EH300, W06D, W04D | |
| For Nissan | 1027, PDS, PE6, PEST, FE6, FE6T, PF6, 8030, BD33, NE6, RDB, RFS, RE8, RG8, RH8 | |
